Our choice of dinghy and outboard AB Rider and Mercury
Our Dinghy:
It combines safety, comfortable tender with power and speed similar to jetski in one. Construction and design are robust as the reinforced fiberglass (GRP) is molded with air tubes Orca(CSM) material (Hypalon®) one of the strongest material used to build big RIB’s. As we equipped our tender in 30HP Mercury outboard, it had reached a maximum speed of 30 kts! It is just great!

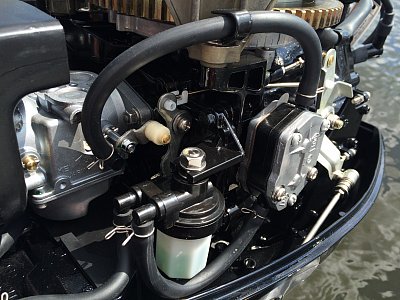

ABRider is equipped with a two-stroke 30HP outboard engine made in Japan as it was the lightest available on the market (52Kg) and as all two strokers easy to maintain, adjust and repair by anyone. This is the biggest advantage of this set, as two-stroke engines are extremely reliable, simply build with the parts available around the World. Most of the engines still used for over 15 years at fisherman’s boats, coast guards, police and military forces as they reliable and last forever…
In the past, two-stroke outboards suffered a reputation as fuel-drinkers, dirty-exhaust motors- it is not the truth anymore. Manufactures improved them a lot. However many bigger size, conventional two-strokes have been suspended in production and replaced by state-of-the-art, direct-injected two-strokes and fuel-injected two-strokes, available in great array of horsepower ratings. Currently, produce engines present great performance for the way they preserve fuel and accelerate a boat like crazy.
DI (direct-injected) two-stroke outboard at lower rpm is stronger in performance because they use a power stroke with every turn of the crank.

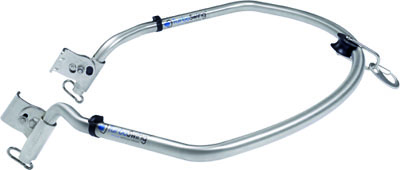

With this tender setup, you can enjoy also water skiing. You can install the Turbo swing to make it easy and safe.
Stunning conditions as it is brand new approx 12-15 hour work only,

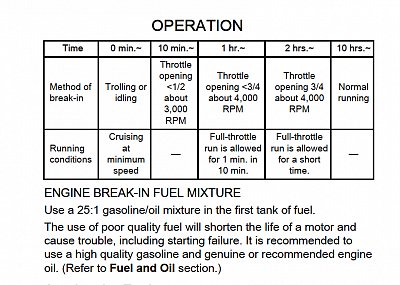

after 10 hours of Mercury engine break-in procedure completed.

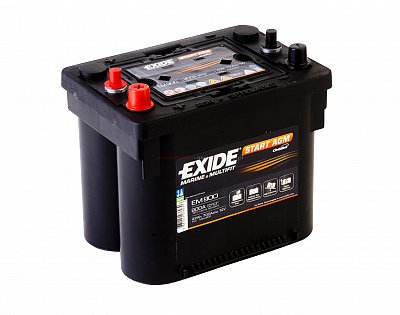

As the engine has its own alternator we add a marine grade battery 42Ah 900A Exide Start AGM EM900
which allows trouble-free startup by turning the key, gives you the freedom to add any equipment on board. Power white light (not obligatory but increasing safety during night usage) has been installed. Additionally RPM meter was mounted.
The gasoline 25l tank is hidden in the spacious bow compartment. Total weight is 192kg + tank.
The new AB Rider delivers the ultimate water experience. Its unsurpassed design and outstanding performance will give you many hours of safe and exhilarating fun. It is relatively lightweight, fuel-efficient and exciting 10’ inflatable has ample seating for two adults and plenty of storage to keep your cargo protected and dry at all times. It will be still a tender to your mother ship and can be lifted by its four davit lifting points for storage. The AB Rider was made with the same safety features found on other inflatable boats such as three air chambers and tough Orca(CSM) material. The AB Rider was designed for those looki
ng for a new type of thrilling and versatile watercraft. - this is what manufacturer marketing division says but I can 100% confirm.
AB Rider pictures with a lot of details you can find here
As we equipped our tender in 30HP Mercury outboard we had reached a maximum speed of 30 kts! It is just great!
This speed is possible in very comfortable conditions: no waves or just small, 2 persons, no other heavy equipment or luggage, as even small waves will be made us flying above the water.
Before you buy this excellent toy make sure to check carefully parameters of your Davits.
AB Raider has different shapes then most of the standard dinghies, the distance between the outboard engine and steering wheel column must be check.
Once you lift it up dinghy should go tightly to arms of davits against air tubes. To achieve this you might need to do some adaptation of davit lifting points or davits mounting points. For those who tow their tender behind there is no problem.
Actually, the only reason that I am selling this wonderful set of equipment is our mistake in the installation of davits. They were prepared for a simple dinghy as the manufacture of our boat prepare reinforcement of the deck ( and under the deck) for future davits retrofit for standard rib. So we decide to farewell with such performance as there are no options on the market which could be so light and robust has a console and allow such powerful engine..
AB Inflatables page http://www.abinflatables.com/ab-rider
AB Rider pictures with a lot of details you can find here
Overall Length: 10' 6" / 3,20m
Overall Beam: 5' 9" / 1,76m
Inside Length: 7' 9" / 2.37mm
Inside Beam: 2' 10" / 0,86m
Tube Diameter: 17" / 0,43m
Number of Chambers: 3
Person Capacity: 4
Weight: 273lb / 124kg
Recommended HP: 25hp / 18,7kw
Maximum HP: 30hp / 22,4kw
Shaft Length: 20' / 50,8cm
RDC Design Category: C
Standard Equipment
Integrated Two Person Jockey Style Console
Heavy Duty Hand Laid Fiberglass Deep “V” Hull
Heavy Duty Stringer System Laminated into Hull
Diamond Shape Non-Skid Deck
Plastic External Transom Plate
Aluminum Internal Transom Plate
Hand Pump
Maintenance Kit
Owner's Manual
Large Bow Fuel, Anchor & Storage Locker
Orca (CSM) Five Layer Coated Fabric
3 Push Plastic Non-Corrosive 2 Stage Inflation Valves
Raised Single Rub Rail
Stainless Steel Bow Eye
4 Stainless Steel Davit Lifting Points
Stainless Steel Tow Rings & Tie Downs
Inner Hull Drain with Plug
Deck Drain with Plug
1 Front & 2 Side Orca (CSM) Fabric Handles on Tubes
2 Inside Heavy Duty Orca (CSM) Fabric Handles on Tubes
3 Layers Reinforced Seams
Mechanical Steering System
Stainless Steel Steering Wheel
Closed Cell Foam Upholstery
Compare Outboards
|
|
Twostroke 30HP
|
Twostroke 15HP
|
FOURSTROKE25 hp EFI
|
FOURSTROKE20 hp
|
|
HP / kW |
30 / 22.5 |
15 / 11.4 |
25 / 18.6 |
20 / 14.7 |
|
Engine type |
|
|
Inline 3 |
Inline 2 |
|
Displacement (CID/CC) |
26.3 / 430 |
17.9 / 294 |
32.1 / 526 |
21.4 / 351 |
|
Cylinder Configuration |
|
|
|
|
|
|
||||
|
|
|
|||
|
Full throttle RPM |
4750 - 5500 |
5200 - 5800 |
|
|
|
Air induction |
|
|
|
|
|
Fuel induction system |
Loop charged (1 carb) |
Loop charged (1 carb) |
2 valves per cylinder, single overhead cam (SOHC) |
2 valves per cylinder, single overhead cam (SOHC) |
|
Alternator amp / Watt |
|
No alternator |
15 amp / 186 watt |
12 amp / 138 watt
|
|
Recommended fuel |
|
|
87% octane / up to 10% ethanol |
87% octane / up to 10% ethanol |
|
Recommended oil |
|
|
Mercury FourStroke Oil 10W-30 |
Mercury FourStroke Oil 10W-30 |
|
Engine protection operator warning system |
|
|
Low oil pressure Sensor failure |
Low oil pressure |
|
|
|
|
|
|
|
Starting |
|
|
Electric (turn-key) |
|
|
Controls |
|
|
|
|
|
Steering |
|
Tiller |
|
|
|
Shaft length |
15"/381mm 20"/508 mm |
15"/381 mm 20"/508 mm |
15"/381 mm 20"/508 mm |
15"/381 mm 20"/508 mm |
|
Gearcase ratio |
1.92 : 1 |
1.84 : 1 |
|
|
|
Dry weight *Lightest model available |
|
|
157 lbs / |
115 lbs/52 kg |
|
CARB star rating |
|
|
|
|
|
Emissions Star Rating |
|
|
|
|
|
Bore and stroke |
68 x 59 |
60 x 52 |
2.40 x 2.36" / 61 x 60 mm |
2.40 x 2.36" / 61 x 60 mm |
|
Ignition |
|
|
CDI w/electronic spark advance |
CDI w/electronic spark advance |
|
Fuel system |
|
|
Electronic Fuel Injection (EFI) |
|
|
Cooling system |
|
|
Water-cooled with thermostat |
Water-cooled with thermostat |
|
Gear shift |
|
|
|
|
|
Gearcase options |
|
|
|
|
|
Trim system |
|
|
Power Trim |
Power Tilt |
|
Trim positions |
|
|
|
|
|
Exhaust system |
|
|
Through prop |
Through prop |
|
Shallow water drive |
|
|
|
|
|
Shallow water trim range (degrees) |
|
|
|
|
|
Integrated fuel tank (gal / L) |
|
|
|
|
|
Remote fuel tank (optional) |
|
|
|
|
|
Optional fuel tank (gal / L) |
|
|
|
|
|
Remote fuel tank standard (gal / L) |
|
|
6.6 / 25 |
6.6 / 25 |
|
Counter rotation |
|
|
|
|
|
Color |
|
|
Phantom Black |
Phantom Black |
|
Flush system |
|
|
|
|
|
Pump type |
|
|
|
|
|
Impeller diameter |
|
|
|
|
|
Impeller type |
|
|
|
|
|
Oil Capacity |
|
|
|
|
|
Oil Injection |
|
|
||
GENERAL INFORMATION 2 strokes
25/30 Specifications
|
Model |
|
25M |
30M |
30EH |
30E |
|
Overall length |
|
884 mm (34.8 in.) |
600 mm (23.6 in.) |
||
|
Overrall width |
|
412 mm (16.2 in.) |
355 mm (14 in.) |
||
|
Overrall height |
|
S: 1116 mm (44 in.) ‐ L: 1243 mm (49 in.) |
|||
|
Transom height |
|
S: 435 mm (17.1 in.) ‐ L: 562 mm (22.1 in.) |
|||
|
Weights |
|
51 kg (112 lb) |
55 kg (124 lb) |
54 kg (119 lb) |
|
|
Max output PS/(KW) |
|
25 (18.4) |
30 (22.1) |
||
|
Full‐throttle RPM |
|
5,000 ‐ 6,000 |
5,150 ‐ 5,850 |
||
|
Fuel consumption |
|
13 ltr/hr |
|||
|
Number of cylinders |
|
2 |
|||
|
Piston displacement |
|
430 cc (26.2 cu in.) |
|||
|
Cylinder bore |
|
68 mm (2.68 in.) |
|||
|
Piston stroke |
|
59 mm (2.32 in.) |
|||
|
Exhaust system |
|
Through hub exhaust |
|||
|
Cooling system |
|
Water cooled |
|||
|
Starting system |
|
Manual |
Electric/Manual |
||
|
Battery rating |
|
Minimum reserve capacity rating of 100 minutes and CCA of 350 amps |
|||
|
Ignition |
|
CD Ignition |
|||
|
Spark plug |
|
NGK B7HS ‐ 10 or Champion L82C ‐ NGK BPR7HS ‐ 10 |
|||
|
Spark plug gap |
|
1.0 mm (0.035 in.) |
|||
|
Alternator |
|
12 V, 18 W |
|||
|
Fuel mixing ratio |
|
50:1 ‐ Regular Gasoline 50 : Oil 1 (Quicksilver TC ‐ WII or TC ‐ WIIl 2 Cycle) |
|||
|
Fuel tank capacities |
|
25 L (6.6 gal.) |
|||
|
Gear reduction ratio |
|
1.92 : 1 |
|||
|
Gear oil |
|
Quicksilver Gear Lube Premium Blend |
|||
|
Gear oil volume |
|
280 ml (9.5 fl.oz.) |
|||
|
HP / kW |
20 / 14.7 |
|
Engine type |
Inline 2 |
|
Displacement (CID/CC) |
21.4 / 351 |
|
Full throttle RPM |
|
|
Fuel induction system |
2 valves per cylinder, single overhead cam (SOHC) |
|
Alternator amp / Watt |
12 amp / 138 watt |
|
Recommended fuel |
87% octane / up to 10% ethanol |
|
Recommended oil |
Mercury FourStroke Oil 10W-30 |
|
Engine protection operator warning system |
Low oil pressure |
|
Starting |
|
|
Steering |
|
|
Shaft length |
15" / 381 mm 20" / 508 mm |
|
Gearcase ratio |
|
|
Dry weight *Lightest model available |
115 lbs / 52 kg |
|
CARB star rating |
|
|
Emissions Star Rating |
|
|
Bore and stroke |
2.40 x 2.36" / 61 x 60 mm |
|
Ignition |
CDI w/electronic spark advance |
|
Fuel system |
|
|
Cooling system |
Water-cooled with thermostat |
|
Gear shift |
|
|
Gearcase options |
|
|
Trim system |
Power Tilt |
|
Trim positions |
|
|
Exhaust system |
Through prop |
|
Shallow water drive |
|
|
Shallow water trim range (degrees) |
|
|
Remote fuel tank standard (gal / L) |
6.6 / 25 |
|
Color |
Phantom Black |
|
30 / 22.5 |
|
|
Displacement (CID/CC) |
26.3 / 430 |
|
Cylinder Configuration |
|
|
Full throttle RPM |
4750 - 5500 |
|
Fuel induction system |
Loop-charged (1 carb) |
|
Starting |
|
|
Steering |
|
|
Shaft length |
15" / 381 mm 20" / 508 mm |
|
Gearcase ratio |
1.92 : 1 |
|
Dry weight *Lightest model available |
|
|
Emissions Star Rating |
|
|
Bore and stroke |
68 x 59 |
|
Trim positions |
|
|
Oil Injection |
|
